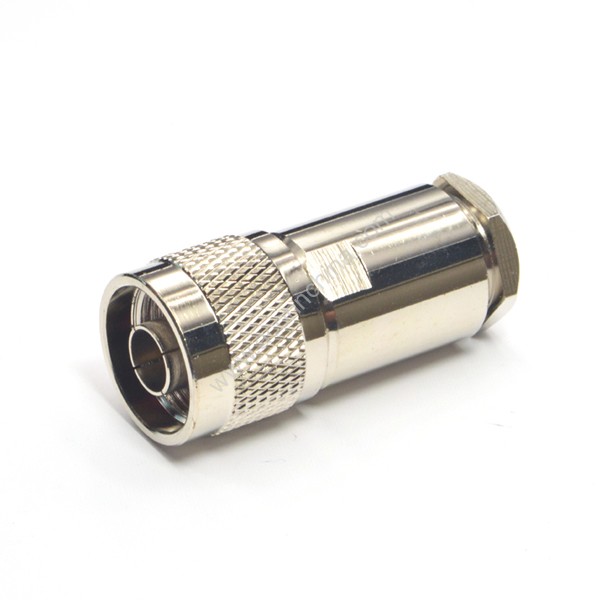

Product Name:RF connector N male straight clamp for LMR400 cable

Details

Product Specification
Brand:ACONN
Connector Interface:N  IEC 60169-16
Body Style:Straight
Gender:Male
Connector Impedance:50ohm
Frequency Range:5-3000MHz
VSWR:≤1.20(5-3000MHz)
Outer Contact Resistance,Maximum:0.25 mOhm
Inner Contact Resistance,Maximum:1 mOhm
Withstand Voltage (at Sea Level):2500V rms, 50 Hz
Insulation Resistance,Minimum:5000 MOhm
Outer Contact Plating:Nickel/Trimetal
Inner Contact Plating:Silver/Gold
Insulation:PTFE
O-Ring:Silicon Rubber
Interface Durability:500 cycles
Operating Temperature:-55°C to +85°C
